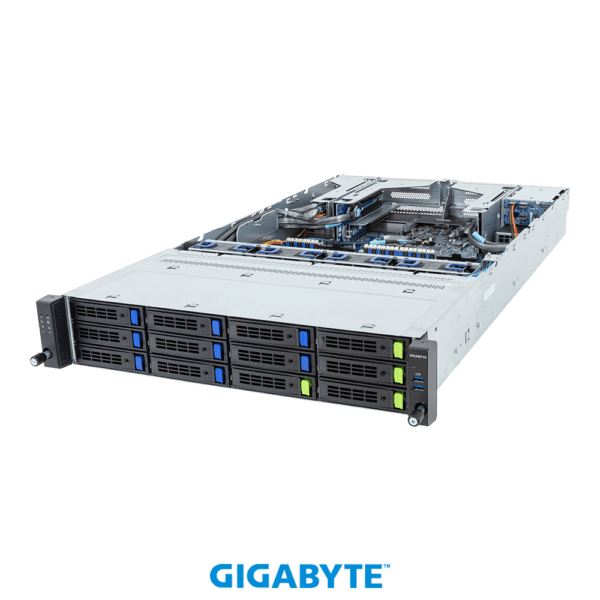

Gigabyte R283-S91-AAE1 Rack Server

Gigabyte R283-S91-AAE1 Rack Server

  • Rack Server – 5th/4th Gen Intel® Xeon® Scalable – 2U DP 12+2-Bay Gen4 NVMe/SATA/SAS Platinum
    Networking | Hybrid/Private Cloud Server
    • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
    • Dual Intel® Xeon® CPU Max Series

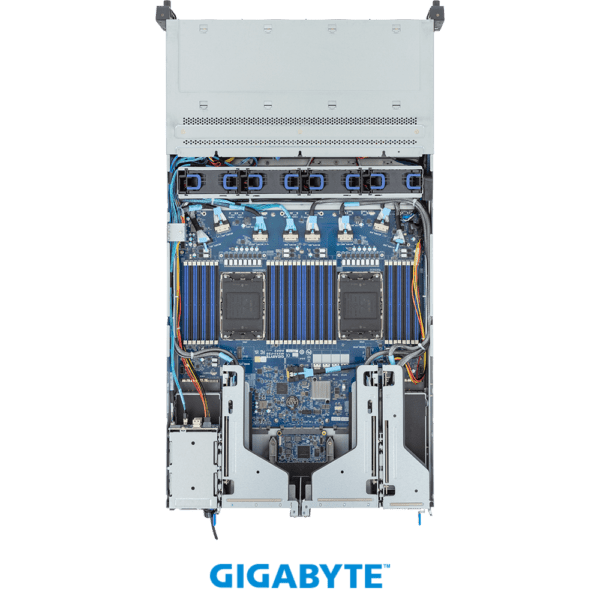

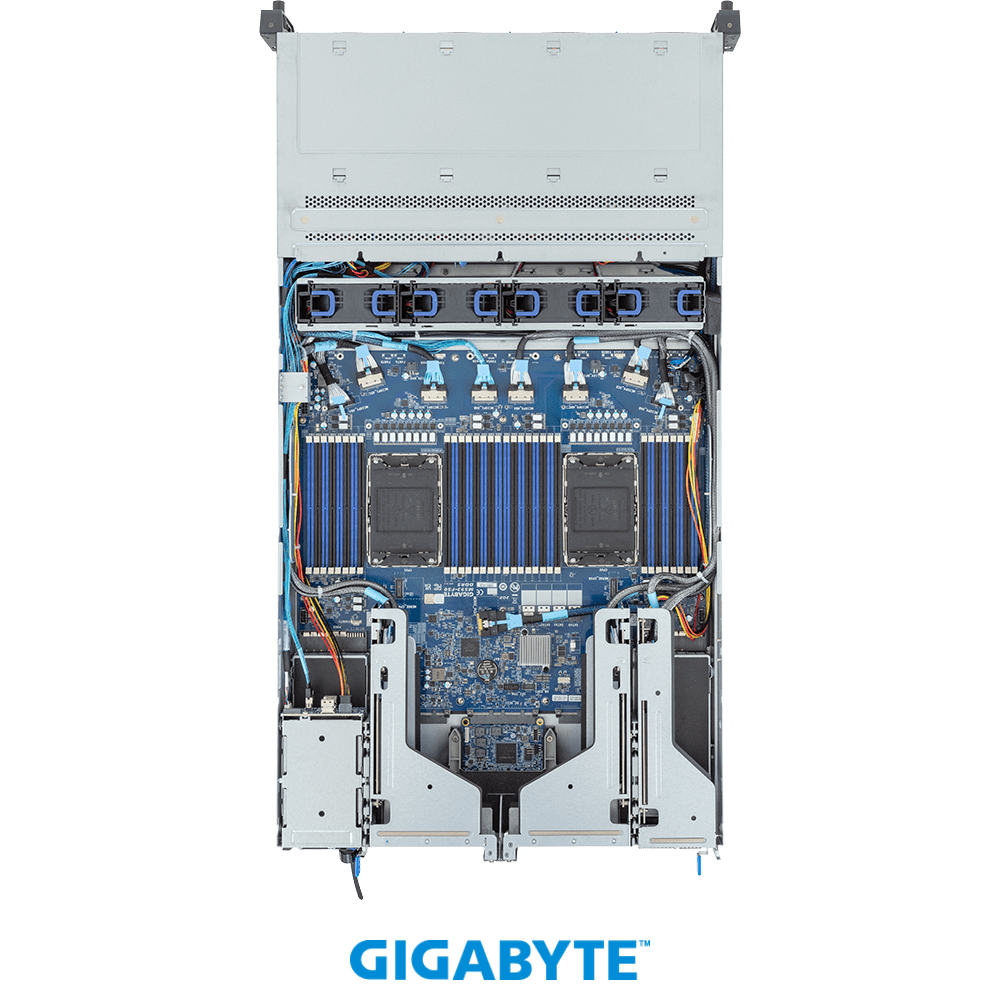

    • 8-Channel DDR5 RDIMM, 32 x DIMMs
    • Dual ROM Architecture
    • 2 x 1Gb/s LAN ports via Intel® I350-AM2

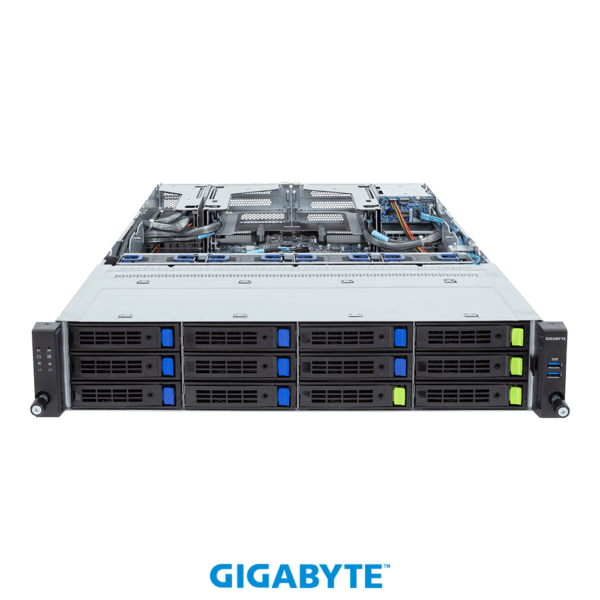

    • 4 x 3.5″/2.5″ Gen4 NVMe/SATA/SAS hot-swap bays
    • 8 x 3.5″/2.5″ SATA/SAS hot-swap bays
    • 2 x 2.5″ SATA/SAS hot-swap bays on the rear side
    • Onboard 12Gb/s SAS expander
    • 6 x FHHL PCIe Gen5 x16 slots
    • 2 x LP PCIe Gen5 x8 slots
    • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
    • 1+1 2000W 80 PLUS Platinum redundant power supplies



    Ordering Numbers: 6NR283S91DR000ABE1*
    PCG Bilgisayar | Gigabyte R283-S91-AAE1 Rack Server  PCG Bilgisayar | Gigabyte R283-S91-AAE1 Rack ServerPCG Bilgisayar | Gigabyte R283-S91-AAE1 Rack ServerPCG Bilgisayar | Gigabyte R283-S91-AAE1 Rack ServerPCG Bilgisayar | Gigabyte R283-S91-AAE1 Rack ServerPCG Bilgisayar | Gigabyte R283-S91-AAE1 Rack ServerPCG Bilgisayar | Gigabyte R283-S91-AAE1 Rack Server





• Kurumsal sınıf donanım platformu
• Yüksek performanslı işlemci desteği
• Uzun süreli kullanım için tasarlanmış
• Proje bazlı konfigürasyon imkanı

Teklif Al
WhatsApp İletişim
Teknik Destek

Gigabyte R283-S91-AAE1 Rack Server

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
Motherboard
MS93-FS0
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max SeriesDual processor, TDP up to 350W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket
2 x LGA 4677
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
DDR5 memory supported
8-Channel memory per processor5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]

4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

LAN
Rear (G-SCM board – CDCR112):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
– Support NCSI function1 x 10/100/1000 Mbps Management LAN

Video
Integrated in ASPEED® AST2600
– 1 x Mini-DP
Storage
Front hot-swap:
4 x 3.5″/2.5″ Gen4 NVMe/SATA/SAS [1]
8 x 3.5″/2.5″ SATA/SAS [1]
– (NVMe from CPU_1)Rear hot-swap:
2 x 2.5″ SATA/SAS [1]

[1] Storage card is required to enable SATA and SAS drives.
– Broadcom SAS35x24R expander
– Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

[Note] Please select verified enterprise SATA drives.

SAS
Supported via storage cards
RAID
Require RAID add-in cards
Onboard VROC key header
PCIe Expansion Slots
Riser Card CRS101J:
– 1 x FHHL x16 (Gen5 x16), from CPU_0Riser Card CRS101K:
– 1 x FHHL x16 (Gen5 x16), from CPU_1

Riser Card CRS202E:
– 2 x LP x16 (Gen5 x8), from CPU_0

Riser Card CRS202G:
– 2 x FHHL x16 (Gen5 x16), from CPU_0 [1]

Riser Card CRS202H:
– 2 x FHHL x16 (Gen5 x16), from CPU_1

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
– Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
– Supports NCSI function

[1] Slot_10 is downgraded to Gen4 when using XCC CPUs with 4 x UPI.

Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

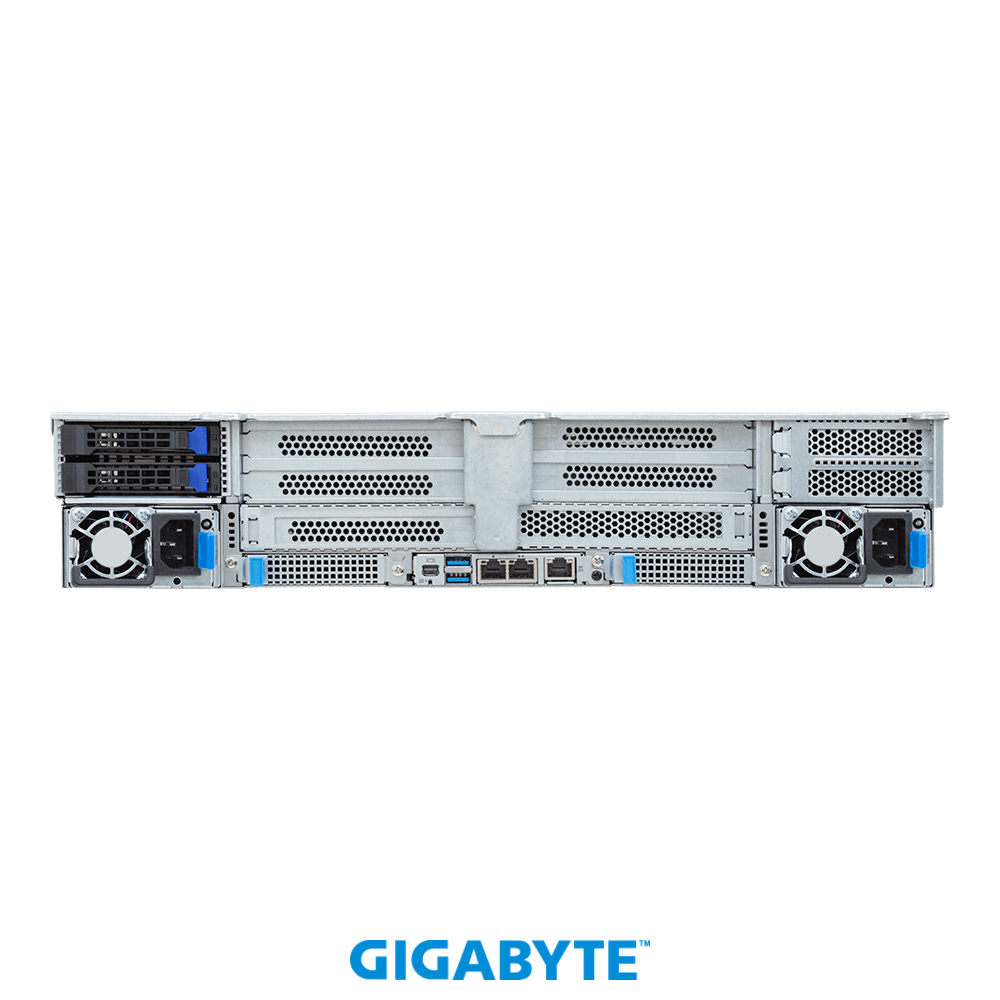

Rear I/O
G-SCM board – CDCR112:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
Front side – CBP21C1: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side – CBP2022: SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
– Optional TPM2.0 kit: CTM010
Power Supply[#1]

1+1 2000W 80 PLUS Platinum redundant power supplies

AC Input:
– 100-120V~/ 12A, 50/60Hz
– 180-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
– 240Vdc/ 10A

DC Output:
– Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
– Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
– Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
– Max 2000W/ 221-240V~ or 240Vdc Input
+12.2V/ 163.5A
+12Vsb/ 2.5A

[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility

Please refer to OS compatibility table in support page

Additional certifications:
Ubuntu 22.04 LTS
VMware ESXi 8.0 (for 4400/3400 series)
VMware ESXi 8.0 (for 6400/5400 series)
VMware ESXi 8.0 (for 8400 series)
Windows Server 2022
Windows Server 2025

System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 30.6 kg
Gross Weight: 35.6 kg
Packaging Dimensions
1082 x 685 x 314 mm
Packaging Content
1 x R283-S91-AAE1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit
Part Numbers
– Barebone package (5th/4th Gen): 6NR283S91DR000ABE1*
– Barebone package (4th Gen): 6NR283S91DR000AAE1*
– Motherboard: 9AS93FS0UR-000*
– 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
– CPU heatsink: 25ST1-323208-A0R
– Front panel board – CFP2001: 9CFP2001NR-00*
– Backplane board – CBP21C1: 9CBP21C1NR-00*
– Backplane board – CBP2022: 9CBP2022NR-00*
– Fan module: 25ST2-88382T-S1R
– Riser card – CRS101J: 9CRS101JNR-00*
– Riser card – CRS101K: 9CRS101KNR-00*
– Riser card – CRS202E: 9CRS202ENR-00*
– Riser card – CRS202G: 9CRS202GNR-00*
– Riser card – CRS202H: 9CRS202HNR-00*
– G-SCM board – CDCR112: 9CDCR112NR-00*
– Mini-DP to D-Sub cable: 25CRN-200801-K1R
– Power supply: 25EP0-22000A-L0SOptional parts:

– 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
– Cable Management Arm: 25HB1-R18300-K0R
– RMA packaging: 6NR283S91SR-RMA-A100

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
